Metrock Steel Industries is a highly recommended Copper Tube Manufacturer in India. We supply Copper Tube in trusted grades according to different industrial requirements. Our supply process is maintained for wall thickness, OD/ID and roundness, which guarantees dimensional accuracy in each batch we supply. We have in place strict quality checks at every stage, ensuring that our customers have no reason to worry about duplicate or poor-quality Copper Tube material being used.
- +91 82914 82941
- Mumbai, India
- sales@metrocksteel.com
Copper Tube Manufacturer in India
- What is Copper Tube
- Specification of Copper Tube
- Types of Copper Tube
- Size of Copper Tube
- Application of Copper Tube
- Copper Tube Manufacturing Process
- Copper Tube Chemical Composition
- Copper Tube Mechanical Properties
- Packaging of Copper Tube
- Grades of Copper Tube
- Copper Tube Supplier in Cities
- Copper Tube Exporter in Countries
10mm Seamless Copper Tube Supplier, C12200 Eco Friendly Copper Tube Dealer, Copper Tube Manufacturer in India
ASTM B88 Copper Plumbing Tube Manufacturer, 8mm Polished Copper Pipe Exporter, Seamless Copper Tube Supplier in India
Metrock Steel Industries is a foremost Copper Tube Supplier in India. We supply the Copper Tube ranging 1 to 6 meters in length or as per the project requirement. Our Copper Tube is tested for tensile strength which is in MPa and have elongation of 20- 30% which ensures the durability and flexibility. Our manufacturing process has been certified to ISO 9001. a dedication to uniformity of quality.. We are also a leading Brass Tube Manufacturer in India.
Copper Tube Specification
| Standard | ASTM B68 / ASTM B75 / ASTM B280 / ASTM B88 / JIS H 3300 / EN1057 or BS2871: PART 2:1972 / DIN 1754/8905/ IS2501 |
| Specification | ASTM B280, JIS H3300, AS/NZS1571.JIS3300-2006 |
| Grades | TU2, C1020T, C10200, T2, C1100, TP1, C1201T, C1200, TP2, C1220T, C12200, C14200, C19400, etc |
| Outer Diameter(OD) | 4mm-150mm |
| Wall Thickness : | 0.25mm-8mm |
| Length | 1 meter-6 meter or as required |
| Cut Length | Single Random, Double Random & Cut Length |
| Types | Seamless Pipes, Tube / Inner Grooved Tubes / Square Pipes, Tube, Tube / Finned Tube |
Copper Tube Size
| Gauge (SWG) | Wall (inches) | O.D. (inches) | Max Allowable Pressure (PS) in supplied* condition at 100deg C (Barg) | Max Allowable Pressure (PS) in annealed condition at 100deg C (Barg) |
| 20 | 0.036 | 1/2” | 91 | 78 |
| 21 | 0.032 | 3/8” | 108 | 93 |
| 18 | 0.048 | 1/2” | 118 | 102 |
| 19 | 0.04 | 5/8” | 79 | 67 |
| 20 | 0.036 | 5/8” | 73 | 62 |
| 18 | 0.048 | 5/8” | 95 | 81 |
| 19 | 0.04 | 3/4” | 73 | 57 |
| 20 | 0.036 | 3/4” | 61 | 51 |
| 18 | 0.048 | 3/4” | 77 | 65 |
| 19 | 0.04 | 7/8” | 55 | 46 |
| 16 | 0.064 | 3/4” | 102 | 88 |
| 18 | 0.048 | 7/8” | 66 | 55 |
| 12 | 0.104 | 7/8” | 142 | 125 |
| 16 | 0.064 | 7/8” | 88 | 75 |
| 18 | 0.048 | 1.1/8” | 51 | 43 |
| 14 | 0.08 | 1.1/8” | 85 | 72 |
| 16 | 0.064 | 1.1/8” | 68 | 57 |
| 18 | 0.048 | 1.3/8” | 41 | 35 |
| 14 | 0.08 | 1.3/8” | 69 | 59 |
| 16 | 0.064 | 1.3/8” | 55 | 47 |
| 12 | 0.104 | 1.3/8” | 90 | 77 |
| 16 | 0.064 | 1.5/8” | 47 | 39 |
| 18 | 0.048 | 1.5/8” | 35 | 29 |
| 14 | 0.08 | 1.5/8” | 58 | 49 |
| 11 | 0.116 | 1.5/8” | 85 | 73 |
| 12 | 0.104 | 1.5/8” | 76 | 65 |
| 18 | 0.048 | 2.1/8” | 27 | 22 |
| 14 | 0.08 | 2.1/8” | 44 | 37 |
| 16 | 0.064 | 2.1/8” | 35 | 30 |
| 12 | 0.104 | 2.1/8” | 58 | 49 |
| 16 | 0.064 | 2.5/8” | 33 | 24 |
| 12 | 0.104 | 4.1/8” | 34 | 25 |
| 14 | 0.08 | 2.5/8” | 41 | 30 |
| 18 | 0.048 | 2.5/8” | 25 | 18 |
| 16 | 0.064 | 3.1/8” | 28 | 20 |
| 14 | 0.08 | 3.1/8” | 35 | 25 |
| 12 | 0.104 | 2.5/8” | 54 | 39 |
| 12 | 0.104 | 3.1/8” | 45 | 33 |
| 14 | 0.08 | 3.5/8” | 30 | 22 |
Copper Tube - Types
Application of Copper Tube
- Pharmaceutical Industry
- Marine Industries
- Plumbing and HVAC
- Architecture
- Electrical Industry
- Fuel & Gas Industry
- Earthing System
- Power Generation
Client / Export Case Studies
Medical Gas Systems
Product: Copper Pancake Coil
Spec: ASTM B88
Dimension: 15–50 m
JAMNAGAR, INDIADistillation Equipment
Product: C14200 Copper Plumbing Tube
Spec: ASTM B75
Dimension: 2-1/2"
HYDERABAD, INDIAAgricultural Equipment
Product: Eco Friendly Copper Tube
Spec: IS2501
Dimension: 0.60–0.76 mm
AHMEDABAD, INDIAHeat Exchangers, Engineering & Fabrication's Brass Tube come in a range of sizes and are ideal for diverse applications.
Metrock Steel Industries

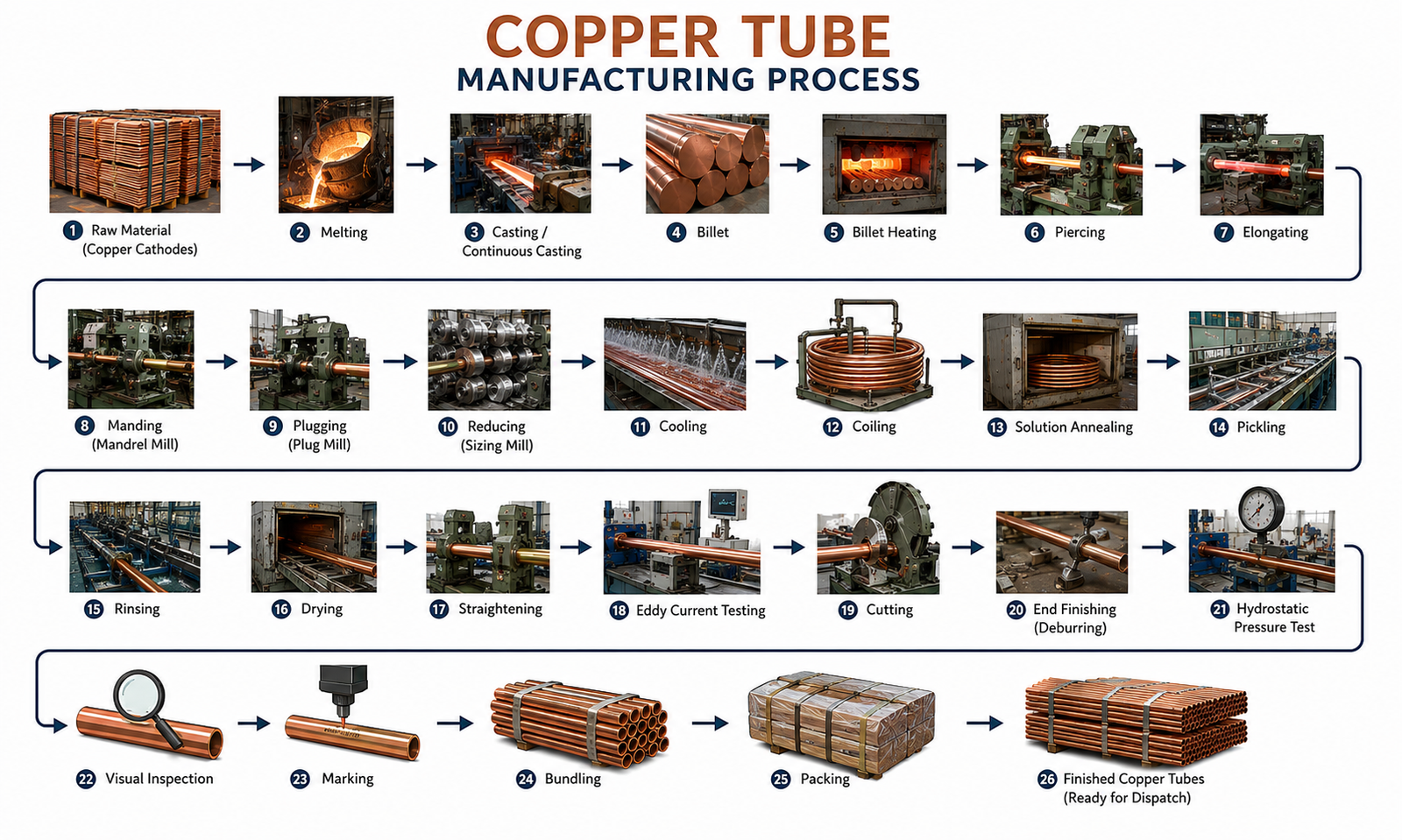

Copper Tube Manufacturing Process
Copper Tube Chemical Composition
| Grade | Copper (Cu) | Phosphorus (P) | Zinc (Zn) | Iron (Fe) | Other Elements |
| C10100 | ≥ 99.99% | ≤ 0.002% | — | — | O ≤ 0.0005% |
| C10200 | ≥ 99.95% | — | — | — | O ≤ 0.0010% |
| C11000 | ≥ 99.90% | — | — | — | O ≤ 0.04% |
| C12000 | ≥ 99.90% | 0.004–0.012% | — | — | Balance Cu |
| C12200 | ≥ 99.90% | 0.015–0.040% | — | — | Balance Cu |
| C14200 | ≥ 98.0% | — | 0.5–1.5% | — | Balance Cu |
| C19400 | 97.0–98.9% | 0.015–0.15% | — | 2.1–2.6% | Balance Cu |
| C26000 | 68.5–71.5% | — | Balance | ≤ 0.07% | Pb ≤ 0.07% |
| C27000 | 63.0–68.5% | — | Balance | ≤ 0.10% | Pb ≤ 0.07% |
| C68700 | 76.0–79.0% | — | 2.0–4.0% | 0.1–1.0% | Al 1.8–2.5%, As 0.02–0.06% |
| C70600 | ≥ 90.0% | — | — | 1.0% | Ni 9.0–11.0% |
| C71500 | ≥ 70.0% | — | — | 1.0% | Ni 29.0–33.0% |
Copper Tube Mechanical Properties
| Standard | Copper Alloy No. | Mechanical Properties | |||
| Tensile strength (Mpa) | Grain Size (mm) | Elongation(%) | Temper | ||
| EN 1057 | – | O250 | – | O30 or 20 | R250 |
| O220 | – | O40 | R220 | ||
| O290 | – | O3 | R290 | ||
| JIS H3300 | C1100 | 245 ~ 325 | – | – | OL |
| O205 | – | O40 | |||
| O265 | – | – | H | ||
| C1220 | O255 | – | – | H | |
| O205 | O0.040 | O40 | OL | ||
| O205 | 0.025 ~ 0.060 | O40 | O | ||
| 245 ~ 325 | – | – | 1/2H | ||
| ASTM B88 | C11000 | O200 | O0.025 | – | O50 |
| O200 | O0.040 | – | O60 | ||
| C12200 | O250 | – | – | H58 | |
| ASTM B75 | C11000 | O205 | O0.040 | – | O50 |
| O205 | O0.040 | – | O60 | ||
| C12200 | O310 | – | – | H80 | |
| O250 | – | – | H58 | ||
Copper Tube Equivalent Grades
| Alloy Name | UNS | EN | DIN | JIS | IS | AS/NZS |
| C101 | C10100 | CW004A | Cu-OF | C1020 | Cu-OF | C101 |
| C102 | C10200 | CW008A | Cu-OF | C1020 | Cu-OF | C102 |
| C110 | C11000 | CW004A | Cu-ETP | C1100 | Cu-ETP | C110 |
| C122 | C12200 | CW024A | Cu-DHP | C1220 | Cu-DHP | C122 |
| C145 | C14500 | CW118C | CuTe | C1450 | CuTe | C145 |
| C172 | C17200 | CW101C | CuBe2 | C1720 | CuBe2 | C172 |
Packaging of Copper Tube
Our products are securely packaged using durable, eco-friendly materials to ensure protection during transit.
- Wooden Crates or Boxes
- Bundled Packaging
- Steel Strapped Bundles
- Plastic Wrap
- Shrink Wrap
Available Stock of Copper Tube
- Bare Copper Tubes
- ETP Copper Gas Tubing
- Copper Exhaust Tubing
- Copper Straight tube
- Seamless Copper Tube
- Threaded Copper Tube
- OFHC Copper Tube
- ASTM B280/B152/B111 Copper Bright Seamless Tube
- ASTM B280 Soft Temper Copper Tube in Refrigeration
- DHP Copper Tube
- Insulated Copper Tube for Air Conditioner
- Cold Drawn Seamless Straight Pure Copper Tube
- Air Conditioner Copper Tube
- 1/4″ ASTM B280 Seamless Copper Soft Tube
- Copper Mould Tube for Continue Casting Machine
- Insulated Air Conditioner Copper Tube with Corrugation
Copper Tube Supplier in Cities
We manufacture Copper Alloy Tubes specifically suited for medical and plumbing systems because they incorporate durability and hygiene advantages. Our Copper Bright Annealed Tubes are supplied in Mumbai, Chennai, Bangalore and other Indian cities.
Air & Sea Freight Delivery Times
| Export Location | Port Name | Delivery By Air in No. of Days | Delivery By Ship in No. of Days |
| Brazil | Port of Santos | 6–9 Days | 30–40 Days |
| Thailand | Port of Laem Chabang | 4–6 Days | 12–19 Days |
| Canada | Port of Vancouver | 6–9 Days | 30–36 Days |
| Mexico | Port of Manzanillo | 7–9 Days | 20–30 Days |
| Turkey | Port of Istanbul | 4–6 Days | 12-16 Days |
Copper Tube Exporter in Countries
FAQ - Frequently Asked Questions
-
ASTM B68 or B75, which is suitable for copper tube?
ASTM B68 is for seamless copper tube for general applications, while ASTM B75 is for seamless copper tube for general engineering use.
-
What type of Copper Tube is used for heat transfer applications?
Copper Tube is widely adopted in heat transfer due to its outstanding thermal conductivity, corrosion resistance as well as long service life.
-
How can I check the purity of a Copper Tube?
To ensure that Copper Tube meets industry purity standards, material test certificates (MTCs), chemical analyses, or spectrometer readings must be used.
-
What are the standard sizes of Copper AC Tube for HVAC systems?
Common HVAC Copper Tube sizes include 1/4", 3/8", 1/2", 5/8", 3/4" and 7/8", suitable for various cooling capacities.
-
Can Copper Tube handle repeated temperature changes without losing performance?
Yes, because Copper Tube do not break or lose their strength, efficiency, or durability when heated and cooled frequently.
