Metrock Steel Industries is a remarkable Copper Pipe Manufacturer in India. We pride ourselves on the manufacturing of Copper Pipe that always meets the required ASTM B280 standards to ensure excellent performance. Our wall thickness ranges from 0.25 mm to 8 mm, supplying our clients with a variety of choices to pick the thickness that is best suited for their project.
- +91 82914 82941
- Mumbai, India
- sales@metrocksteel.com
Copper Pipe Manufacturer in India
Table Of Content
- What is Copper Pipe
- Specification of 28mm Copper Pipe
- Size of Copper Pipe
- Types of Copper Pipe
- Application of 22mm Copper Pipe
- Copper Pipe Manufacturing Process
- Copper Pipe Chemical Composition
- Copper Pipe Mechanical Properties
- Packaging of AC Copper Pipe
- Grades of 3 inch Copper Pipe
- Copper Pipe 15mm in India Cities
- Copper Pipe Exporter in India
Seamless Copper Pipe Manufacturer In India For Hvac Industries
Copper Round Pipe Manufacturers, Type K Copper Pipe, Type L Copper Pipe, Type M Copper Pipe Supplier In India
Metrock Steel Industries is a prominent Copper Pipe supplier in India. We supply our Copper Pipe in both single random and double cut for various requirements. We guarantee quality in our mechanical strength, with a tensile strength of 1,15,000 Psi (790 MPa) and an elongation of 40%. We are also a leading Copper Tube Manufacturer in India.
Copper Pipe Type M, Type L, Type K - Specification
Check our AC Copper Pipe Price list per Meter.
| Standard | ASTM B68 / ASTM B75 / ASTM B280 / ASTM B88 / JIS H 3300 / EN1057 / BS2871: PART 2:1972 / DIN 1754 / DIN 8905 / IS 2501 |
| Specification | ASTM B280, JIS H2300, AS/NZS 1571, JIS H3300-2006 |
| Grade | C10100, C10200, C1020, C11000, C1100, C12000, C1201, C12200, C1220, C14200, C19400, C22000, C26000, C27000, C27200, C46400, C68700, C70600, C71500 |
| Outer Diameter (OD) | 4 mm - 150 mm |
| Wall Thickness | 0.25 mm - 8 mm |
| Length | 1 meter - 6 meter or as required |
| Cut Length | Single Random, Double Random & Cut Length |
| Types | Seamless Pipes, Light Drawn Pipe, Light Annealed Pipe, Bright Pipe, Annealed Pipe, Full Annealed Pipe, Hard Drawn Pipes |
Copper Pipe Size
| Outside diameter (OD) [in (mm)] |
Nominal size |
Inside diameter (ID) [in (mm)] |
||
| Type L | Type K | Type M | ||
| 1⁄2 (12.7) | 3⁄8 | 0.430 (10.922) | 0.402 (10.211) | 0.450 (11.430) |
| 3⁄8 (9.5) | 1⁄4 | 0.315 (8.001) | 0.305 (7.747) | |
| 2 5⁄8 (66.675) | 21⁄2 | 2.465 (62.611) | 2.435 (61.849) | 2.495 (63.373) |
| 5⁄8 (15.875) | 1⁄2 | 0.545 (13.843) | 0.528 (13.411) | 0.569 (14.453) |
| 7⁄8 (22.225) | 3⁄4 | 0.785 (19.939) | 0.745 (18.923) | 0.811 (20.599) |
| 3⁄4 (19.05) | 5⁄8 | 0.668 (16.967) | 0.652 (16.561) | 0.690 (17.526) |
| 1 1⁄8 (28.575) | 1 | 1.025 (26.035) | 0.995 (25.273) | 1.055 (26.797) |
| 1 5⁄8 (41.275) | 11⁄2 | 1.505 (38.227) | 1.481 (37.617) | 1.527 (38.786) |
| 1 3⁄8 (34.925) | 11⁄4 | 1.265 (32.131) | 1.245 (31.623) | 1.291 (32.791) |
| 2 1⁄8 (53.975) | 2 | 1.985 (50.419) | 1.959 (49.759) | 2.009 (51.029) |
| 3 1⁄8 (79.375) | 3 | 2.945 (74.803) | 2.907 (73.838) | 2.981 (75.717) |
Copper Pipe - Types
Copper 12mm Pipe
Copper Square Pipe
Copper Pipe for LPG Gas
Copper Hard Pipe
Copper Half Hard Pipe
Copper Rectangle Pipe
Copper Round Pipe

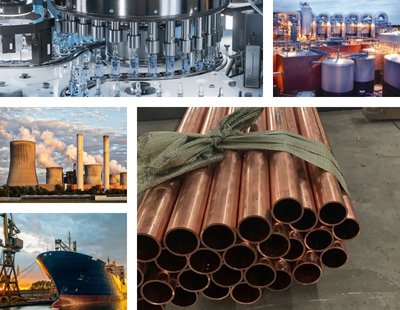

Application of Copper Pipe
- Plumbing and HVAC
- Architecture
- Electrical Industry
- Fuel & Gas Industry
- Automobile Industries
- Marine Industries
- Earthing System
- ACR Application
Client / Export Case Studies
Marine Applications
Product: ACR Copper Tube
Spec: ASTM B68
Dimension: 1/4" (6.35 mm)
MUMBAI, INDIASolar Heating Systems
Product: C12000 Copper Square Pipe
Spec: DIN 1754
Dimension: 6 × 6 mm
DELHI, INDIAElectrical & Power
Product: C10200 Copper Hard Pipe
Spec: ASTM B88
Dimension: 2-1/8"
GUJARAT, INDIAPrecision Copper Pipes for Plumbing, HVAC & Process Piping System
Metrock Steel Industries
Copper Pipe Manufacturing Process
Copper Pipe Chemical Composition
| Alloy Name | Cu-ETP | Cu-DHP | Cu-TBC |
| Trade Name | Electrolytic Tough Pitch Copper | Deoxidized, High Residual Phosporus Copper | Tin Bearing Copper |
| Standard Conformance | |||
| IS | IS 191/ 14811/ 1897 | IS 191/ 14811/ 1897 | IS 3331 |
| ASTM | C11000 | C12200 | C14410 |
| BS 2870 | C101 | C106 | - |
| EN 1652 | CW004A | CW024A | - |
| JIS | C1100 | C1220 | - |
| Chemical Composition | |||
| Copper (Cu%) | 99.90 Min | 99.90 Min | 99.50 Min |
| Tin (Sn%) | - | - | 0.07 - 0.20 |
| Phosphourous (P%) | - | 0.015 - 0.040 | 0.015 - 0.045 |
| Other impurities (%) | - | - | - |
Copper Pipe Mechanical Properties
| Standard | Copper Alloy No. | Mechanical Properties | |||
| Grain Size (mm) | Tensile strength (Mpa) | Temper | Elongation(%) | ||
| ASTM B88 | C11000 | O0.025 | O200 | O50 | – |
| O0.040 | O200 | O60 | – | ||
| C12200 | – | O250 | H58 | – | |
| EN 1057 | – | – | O250 | R250 | O30 or 20 |
| – | O220 | R220 | O40 | ||
| – | O290 | R290 | O3 | ||
| ASTM B75 | C11000 | O0.040 | O205 | O50 | – |
| O0.040 | O205 | O60 | – | ||
| C12200 | – | O310 | H80 | – | |
| – | O250 | H58 | – | ||
| JIS H3300 | C1100 | – | 245 ~ 325 | OL | – |
| – | O205 | O40 | |||
| – | O265 | H | – | ||
| C1220 | – | O255 | H | – | |
| O0.040 | O205 | OL | O40 | ||
| 0.025 ~ 0.060 | O205 | O | O40 | ||
| – | 245 ~ 325 | 1/2H | – | ||
Copper Pipe Equivalent Grades
| Copper Pipe | UNS | EN | DIN | JIS | IS | AS/NZS |
| material | (USA) | (Europe) | (Germany) | (Japan) | (India) | (Australia/ New Zealand) |
| ETP Copper | C11000 | CW004A | E-Cu58 (DIN 2.0065) | C1100 | IS 191 (ETP) | AS 1572-C11000 |
| DHP Copper | C12200 | CW024A | SF-Cu (DIN 2.0090) | C1220 | IS 191 (DHP) | AS 1571 / 1432 |
| OF Copper | C10200 | CW008A | OF-Cu (DIN 2.0040) | C1020 | IS 191 (OF) | AS 1572-C10200 |
| OFE Copper | C10100 | CW009A | OFE-Cu (DIN 2.0040) | C1011 | - | - |
| DLP Copper | C12000 | CW023A | SW-Cu (DIN 2.0070) | C1201 | - | - |
Size Chart And Pressure Rating For Copper Pipe
| Outside Diameter (O.D.) (Inch) | Working Pressure | ||||||
| 6K (Psi) 100°F | 4.8K (Psi) 250°F | 4.7K (Psi) 300°F | 4K (Psi) 350°F | 4.9K (Psi) 200°F | 5.1K (Psi) 150°F | 3K (Psi) 400°F | |
| 3/4" | 511 | 409 | 400 | 341 | 417 | 435 | 256 |
| 3/16" | 1935 | 1548 | 1516 | 1290 | 1581 | 1645 | 968 |
| 1/4" | 1406 | 1125 | 1102 | 938 | 1148 | 1195 | 703 |
| 5/16" | 1197 | 957 | 937 | 798 | 977 | 1017 | 598 |
| 1/2" | 727 | 581 | 569 | 485 | 594 | 618 | 363 |
| 5/8" | 618 | 494 | 484 | 412 | 504 | 525 | 309 |
| 1 1/8" | 494 | 395 | 387 | 330 | 404 | 420 | 247 |
| 7/8" | 582 | 466 | 456 | 388 | 475 | 495 | 291 |
| 1/8" | 3074 | 2459 | 2408 | 2049 | 2510 | 2613 | 1537 |
| 3/8" | 984 | 787 | 770 | 656 | 803 | 836 | 492 |
| 3/4" | 631 | 505 | 495 | 421 | 516 | 537 | 316 |
| 1 5/8" | 408 | 327 | 320 | 272 | 334 | 347 | 204 |
| 1 3/8" | 439 | 351 | 344 | 293 | 358 | 373 | 219 |
Copper Pipe Price per Meter – Size & Grade Wise
| Grade | OD | Wall Thickness | Length | Price / Meter (INR) | Price / Meter (USD) |
| C10100, C10200, C1020 | 4–150 mm | 0.25–8 mm | 1–6 m | ₹400 – ₹480 | $4.25 – $5.10 |
| C11000, C1100, C12000, C1201 | 4–150 mm | 0.25–8 mm | 1–6 m | ₹450 – ₹540 | $4.80 – $5.75 |
| C12200, C1220, C14200 | 4–150 mm | 0.25–8 mm | 1–6 m | ₹510 – ₹620 | $5.40 – $6.60 |
| C19400, C22000, C26000 | 4–150 mm | 0.25–8 mm | 1–6 m | ₹580 – ₹710 | $6.15 – $7.55 |
| C27000, C27200, C46400 | 4–150 mm | 0.25–8 mm | 1–6 m | ₹650 – ₹790 | $6.90 – $8.40 |
| C68700, C70600, C71500 | 4–150 mm | 0.25–8 mm | 1–6 m | ₹720 – ₹880 | $7.65 – $9.35 |
Packaging of Copper Pipe
Our Copper Pipe 28mm are securely packaged using durable, eco-friendly materials to ensure protection during transit.
- Wooden Crates or Boxes
- Bundled Packaging
- Steel Strapped Bundles
- Plastic Wrap
- Shrink Wrap
Available Stock of Copper Pipe
- Copper C10100 Pipes Stockist
- Copper Condenser Pipes
- Copper Alloy Pipe manufacturer
- Copper Seamless Pipe
- Copper Pipe 10mm
- ASTM B88 Seamless Copper Water Pipe
- 15mm Copper Pipe 3m
- 42mm Copper Pipe
- Copper Pipe 3/8
- 22mm Copper Pipe
- Copper Alloy Square Pipes
- Copper C10800 Pipes
- Copper Rectangular Pipes
- Inner Grooved Copper Pipes
- Copper Alloy C10200 Pipe
- Copper High Pressure Pipe
- Copper Pipe Half Hard
- Copper Pipe 5/8
Top Copper Pipe Supplier in Indian Cities
Ahmedabad
Ankleshwar
Aurangabad
Bangalore
Bharuch
Bhavnagar
Bhopal
Chandigarh
Chennai
Coimbatore
Faridabad
Gurugram
Hyderabad
Indore
Jaipur
Jamnagar
Jamshedpur
Jodhpur
Kanpur
Kochi
Kolkata
Lucknow
Ludhiana
Mumbai
Nagpur
Nashik
Pune
New Delhi
Noida
Patna
Rajkot
Ranchi
Rourkela
Surat
Kanpur
Thiruvananthapuram
Thrissur
Vadodara
Vapi
Vijayawada
Meerut
Visakhapatnam
Navi Mumbai
Prayagraj
Thane
Kerala
Vasai
Gujarat
Indore
Jamnager
Gandhinagar
Vadodara
Bhubaneswar
Pimpri-Chinchwad
Air & Sea Freight Delivery Times
| Export Location | Port Name | Delivery By Air in No. of Days | Delivery By Ship in No. of Days |
| Algeria | Port of Algiers | 5–7 Days | 15–22 Days |
| South Africa | Port of Durban | 2–4 Days | 12–18 Days |
| Germany | Port of Hamburg | 5–8 Days | 25–35 Days |
| UAE | Jebel Ali Port | 4–6 Days | 20–30 Days |
| Singapore | Port of Singapore | 3–5 Days | 18–25 Days |
Copper Pipe Exporter in Countries
Algeria
Australia
Austria
Azerbaijan
Bahrain
Belgium
Bulgaria
Denmark
Europe
Egypt
Germany
Ghana
India
Indonesia
Italy
Jordan
Kazakhstan
Kuwait
Libya
Malaysia
Netherlands
Nigeria
Norway
Philippines
Qatar
Romania
Russia
Saudi Arabia (KSA)
Singapore
South Africa
Sudan
Ukraine
UAE
United Kingdom
USA
Uzbekistan
Dubai
Srilanka
Oman
Iran
Turkey
Mexico
Canada
Thailand
Brazil
FAQ - Frequently Asked Questions
-
What are three types of copper pipe?
Copper pipes are available in three main types: Type K, Type L and Type M. Type K has the thickest walls and is used for underground and high-pressure applications, Type L has medium-thickness walls for general plumbing and HVAC; while Type M has the thinnest walls and is mainly used for low-pressure residential plumbing.
-
Why does Copper turns green?
Copper turns green as it reacts with oxygen, moisture, and carbon dioxide in the air, forming a green protective layer known as patina. This layer protects the copper from further corrosion and damage.
-
What type of copper pipe is best for plumbing?
Type L copper pipe is generally considered the best choice for plumbing due to its excellent balance of strength, durability, corrosion resistance, and long service life.
-
ASTM B42 or B88, Which Is Correct?
ASTM B42 is for seamless copper pipe, while ASTM B88 is for copper water tubes used in plumbing and water-service applications.
