Metrock Steel Industries is a leading Copper Pancake Coil Manufacturer in India, We supply a range of high-quality premium ASTM B280/68 Copper Pancake Coils and PCC Copper Pancake Tubes. We create the durable and thermally conductive Pancake Copper Alloy Tubing product (PCC - MEDTUBES) which performs optimally in HVAC systems along with refrigeration units and high-performance systems. Our manufacturing capabilities focus on C12200 Pancake Coils that offer unparalleled resistance to corrosion and maintain high conductive rates.
- +91 82914 82941
- Mumbai, India
- sales@metrocksteel.com

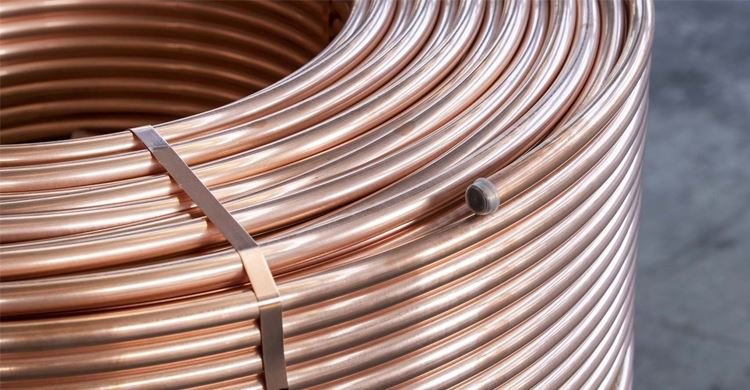

Copper Pancake Coils Manufacturer in India
Table Of Content
- What is Pancake Copper Coils
- Specification of Pancake Copper Coils
- Types of Pancake Copper Coils
- Size of Pancake Copper Coils
- Application of Pancake Copper Coils
- Pancake Copper Coils Chemical Composition
- Pancake Copper Coils Mechanical Properties
- Packaging of Pancake Copper Coils
- Grades of Pancake Copper Coils
- Pancake Copper Coils Supplier in Cities
- Pancake Copper Coils Exporter in Countries
ASTM B280/68 Copper Pancake Coil, PCC Copper Tube, Pancake Copper Alloy Tubing (PCC - MEDTUBES), Copper Pancake Coil Manufacturers, C12200 Pancake Coil Manufacturer in India
Pancake Copper Coil Supplier, Copper Tube Pancake Coil Exporter, PCC (Pancake Copper Coil) Stockist, K-Copper Pancake Coil Stockist, Pancake Copper Coils Supplier in India
Metrock Steel Industries is a trusted Pancake Copper Coil Supplier in India, offering high-quality Copper Tube Pancake Coils for a variety of applications. We are a reliable PCC (Pancake Copper Coil) exporter and stockist, providing durable and efficient coils for HVAC, refrigeration, and other industrial needs.We also Supply includes K-Copper Pancake Coils are available in sizes ranging from 4.76mm to 22.23mm OD, with thickness options from 0.3mm to 1.5mm, known for their excellent thermal conductivity and reliability. With superior quality and on-time delivery, we are your go-to partner for all copper coil requirements. We are also well-known name for Copper Flat Bar Manufacturer in India
Copper Pancake Coil Specification
| Copper Pancake Coil | Specifications |
| Outside Diameter | 3.15 to 28.00 mm |
| PCC Copper Tube Thickness | 0.45 mm and greater |
| Pan Cake Coil Length | Ranging from 5 Meters to 30 Meters |
| C12200 Pancake Coil Tempers | Light Annealed-o50, Soft Annealed-o60 |
| Copper Coils Layers | Single or Double-layer Options |
| Standards | ASTM B280, ASTM B75, ASTM B743, ASTM B68, JIS H3300, EN1057, AS/NZS 1571: 1995, GB/T 17791-2007, EN12735-1, AS1432, IS 10773 Copper Tubes for RF & AC |
| Production Equipment | Face Milling Machine, Horizontal Continuous Casting Furnace, Pulling Machine, Mosquito Coil Forming Machine |
| Soft Copper Tubing Grades | TP2, C19400, C1100, C12200, C1220T, C1201T, C10200, TP1, T2, C14200, C1200, TU2, C1020T etc |
| Coating | PVC coating |
| Plastic Coated Copper Coils Temprature Range | up to 110°C |
| Services | Single Random, Double Random & Cut Length |
| Bare Copper Tube Uses | Individually Bagged, Inkjet Marked, Customer Specific Marking |
Copper Pancake Coils Size
| Copper Pancake Coils - Sizes | |||||||
| THK | SIZE O.D | NO OF COILS | WT OF | WEIGHT PER | |||
| PER BOX | PACKED COIL | BOX KG | BOX TYPE | PRINTING MATTER | |||
| 0.61 | 01/01″ | 6.35 | 22 | 1.5 | 33 | ||
| 0.5 | 03/16″ | 4.76 | 22 | 0.9 | 19.8 | ||
| 0.66 | 03/08″ | 9.52 | 15 | 2.5 | 37.5 | ASTM B 68 C12200 | |
| MM | INCH | MM | RR SHRAMIK EXCEL | (50FT) KG | |||
| 0.57 | 05/16″ | 7.94 | 15 | 1.8 | 27 | RR SHRAMIK (EXCEL) | |
| RR EXCEL | SIZE. “O.D MM – 100% | ||||||
| 0.69 | 05/08″ | 15.88 | 8 | 4.5 | 36 | TESTED – HEAT NO. | |
| 0.68 | 01/02″ | 12.7 | 10 | 3.5 | 35 | EDDY CURRENT | |
| 0.74 | 03/04″ | 19.05 | 6 | 5.8 | 34.8 | ||
| 0.9 | 07/08″ | 22.22 | 4 | 8.2 | 32.8 | ||
| RR SHRAMIK PRIME | |||||||
| 0.58 | 03/08″ | 9.52 | 15 | 2.2 | 33 | ASTM B 68 C12200 | |
| RR PRIME | SIZE. “O.D MM – 100% | ||||||
| 0.65 | 05/08″ | 15.88 | 8 | 4.2 | 33.6 | TESTED – HEAT NO. | |
| 0.62 | 01/02″ | 12.7 | 10 | 3.2 | 32 | EDDY CURRENT | |
| 0.54 | 01/04″ | 6.35 | 22 | 1.35 | 29.7 | RR SHRAMIK (PRIME) | |
| VRF/VRV PCC (RR SHRAMIK) | |||||||
| 0.8 | 01/04″ | 6.35 | 15 | 1.9 | 28.5 | ||
| 0.8 | 01/02″ | 12.7 | 8 | 4 | 32 | RR VRF/VRV | VRFCOPPER TUBE-JIS |
| BOX | H3300- SIZE. “(MM | ||||||
| 0.8 | 03/08″ | 9.52 | 10 | 3 | 30 | RR SHRAMIK – VRV/ | |
| EDDY CURRENT | |||||||
| 1 | 07/08″ | 22.22 | 4 | 9 | 36 | ||
| 1 | 03/04″ | 19.05 | 4 | 7.7 | 30.8 | TESTED – HEAT NO | |
| 1 | 05/08″ | 15.88 | 5 | 6.3 | 31.5 | OD)X MM THK100% | |
Copper Pancake Coils-Types
Application of Copper Pancake Coil
- Automobile Industries
- Marine Industries
- Earthing System
- ACR Application
- Plumbing and HVAC
- Architecture
- Electrical Industry
- Fuel & Gas Industry
Copper Pancake Coil Manufacturer & Exporter in India
Metrock Steel Industries
Copper Pancake Coils Chemical Composition
| Standard | Copper Alloy NO. | Chemical Composition | Mechanical Properties | ||||
| CU% | P% | Temper | Tensile strength (Mpa) | Elongation (%) | Average Grain Size (mm) | ||
| ASTM B280/68 |
C12200 | >99.9 | 0.015 to 0.040 | >60 | >205 | >40 | >0.040 |
| >50 | >245 | - | 0.015 ~ 0.040 | ||||
Copper Pancake Coils Mechanical Properties
| Standard | Copper Alloy No. | Mechanical Properties | |||
| Tensile strength (Mpa) | Grain Size (mm) | Elongation(%) | Temper | ||
| EN 1057 | – | O250 | – | O30 or 20 | R250 |
| O220 | – | O40 | R220 | ||
| O290 | – | O3 | R290 | ||
| JIS H3300 | C1100 | 245 ~ 325 | – | – | OL |
| O205 | – | O40 | |||
| O265 | – | – | H | ||
| C1220 | O255 | – | – | H | |
| O205 | O0.040 | O40 | OL | ||
| O205 | 0.025 ~ 0.060 | O40 | O | ||
| 245 ~ 325 | – | – | 1/2H | ||
| ASTM B88 | C11000 | O200 | O0.025 | – | O50 |
| O200 | O0.040 | – | O60 | ||
| C12200 | O250 | – | – | H58 | |
| ASTM B75 | C11000 | O205 | O0.040 | – | O50 |
| O205 | O0.040 | – | O60 | ||
| C12200 | O310 | – | – | H80 | |
| O250 | – | – | H58 | ||
Packaging of Copper Pancake Coils
Our products are securely packaged using durable, eco-friendly materials to ensure protection during transit.
- Wooden Crates or Boxes
- Bundled Packaging
- Steel Strapped Bundles
- Plastic Wrap
- Shrink Wrap
Available Stock of Copper Pancake Coils
- ASTM B280 Pancake Coil Copper Tube for Split Air Conditioner
- En 12735-1 Standard Annealed Copper Tube in Pancake Coil
- 100FT Soft Annealed Pancake Coiled Copper Tube for Medical
- Soft Annealed Type L Pancake Coil
- 1/2″ X0.81 C12200 Soft Copper Tube R410A Air Conditioner
- Degreased Flexible Pancake Coil
- R410A Grade Pancake Coil Copper Tube
- 50m Long Flexible Pancake Coil
